SAS-GA

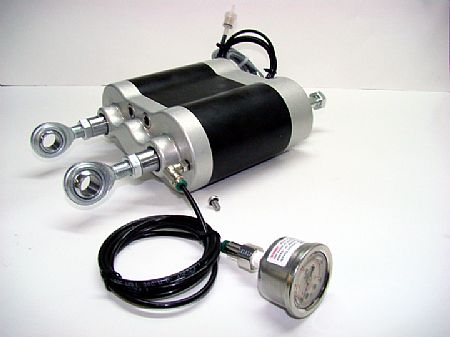

PRESSURE GAUGE ASSEMBLY: Designed for use with our SAS simplified air suspension

The SAS-GA plugs right into the SAS and allows you to monitor your air pressure. This comes in handy when going from one up to two up riding. You will be able to find your most comfortable range and return there again and again.

FEATURES:

• 1 1/2" o.d. 0-300 PSI Stainless Steel Liquid filled pressure gauge
• Female 1/8" NPT push to connect fitting (threads into the gauge)
• Male 90 degree push to connect fitting (threads in the SAS)
• 4 feet of air line to cut to length and easily plug into the fittings

CCCS doesn't supply any mounting hardware due to the many different mounting styles and locations.  CCCS prefers to leave the final fit and finish to the customer.

All SAS systems are now supplied with the gauge port already drilled. The gauge port is pluged with a button head cap screw, washer and o-ring. When installing the gauge you remove this plug and thread in the male 90 degree fitting. The SAS system should never exceed 300psi. With this gauge you will be able to monitor that pressure for your safety and for the protection of your SAS- Simplified Air Suspension.
